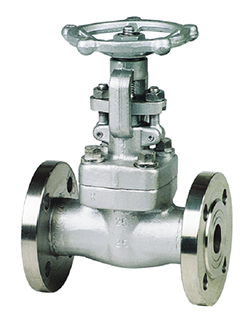

產品結構特點 Construction features
鍛鋼法蘭端閘閥有三種閥蓋設計形式。第一種是螺栓式閥蓋，按這種設計的閥門，其閥體與閥蓋用螺栓螺母連接，纏繞式墊片（316夾柔性石墨制造）。客戶有特殊要求時也可采用金屬環連接。
There are three types of bonnet design for forged flange end valves. The first type is bolted bonnet, which is designed to connect the valve body to the bonnet with bolt nuts and coil gasket (316 clip flexible graphite). Metal ring connections may also be used when customers have special requests.
產品特征 Spericfications
適用介質：水、氣、油品、天然氣和酸堿腐蝕性介質
適用溫度：-196~425℃
驅動方式：手動、氣動、電動等
公稱壓力：1.6~16.0MPa
公稱通徑：DN15~50mm
Applicable media: water, gas, oil, gas and acid and alkali corrosive medium
Applicable temperature: -196~425℃
Driver: manual, pneumatic, electric, etc
Nominal pressure: 1.6~16.0MPa
Nominal size: DN15~50mm
技術規范 Technical specification

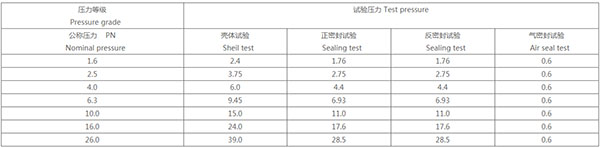

試驗壓力 Test prssure

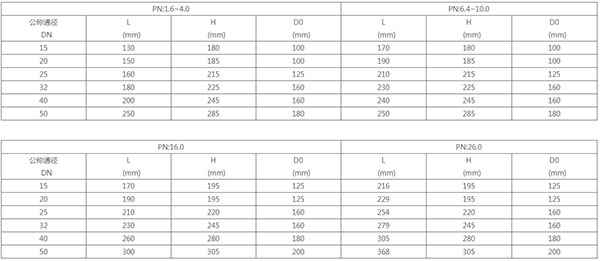

閘閥結構長度和外接尺寸 Main connection dimensions
